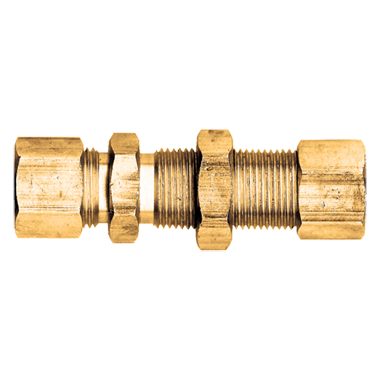

1/4 Tube Od Bulkhead Straight Union Coupling Compression Fitting for Copper Tubing Water Air Oil
1/4 Tube Od Bulkhead Straight Union Coupling Compression Fitting for Copper Tubing Water Air Oil
Regular price
$18.00 CAD
Regular price
$35.00 CAD
Sale price
$18.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1/4" Tube OD Compression Bulkhead Fitting Connector Joiner Extender
NOTE: NPT Thread sizing is unique. If this is your first time ordering for pipe thread fittings please contact us for instructions for NPT thread sizing procedure. We're more than happy to help.
Specifications
Product Family Straight Compression Bulkhead Union
FasParts # COMP-77-4
Body Material Precision Machined Brass with Copper Gasket
Tube OD 1/4" Compression Tube
Max Thickness 5/16" (8mm)
Bulkhead / Panel Hole Size 3/8" (11mm)
| Dash Size | Tube OD | PSI | Copper Tube Wall |
| -2 | 1/8 | 400 | 0.03 |
| -3 | 3/16 | 400 | 0.03 |
| -4 | 1/4 | 300 | 0.03 |
| -5 | 5/16 | 300 | 0.032 |
| -6 | 3/8 | 200 | 0.032 |
| -8 | 1/2 | 200 | 0.032 |
| -10 | 5/8 | 150 | 0.035 |
| -12 | 3/4 | 100 | 0.035 |
